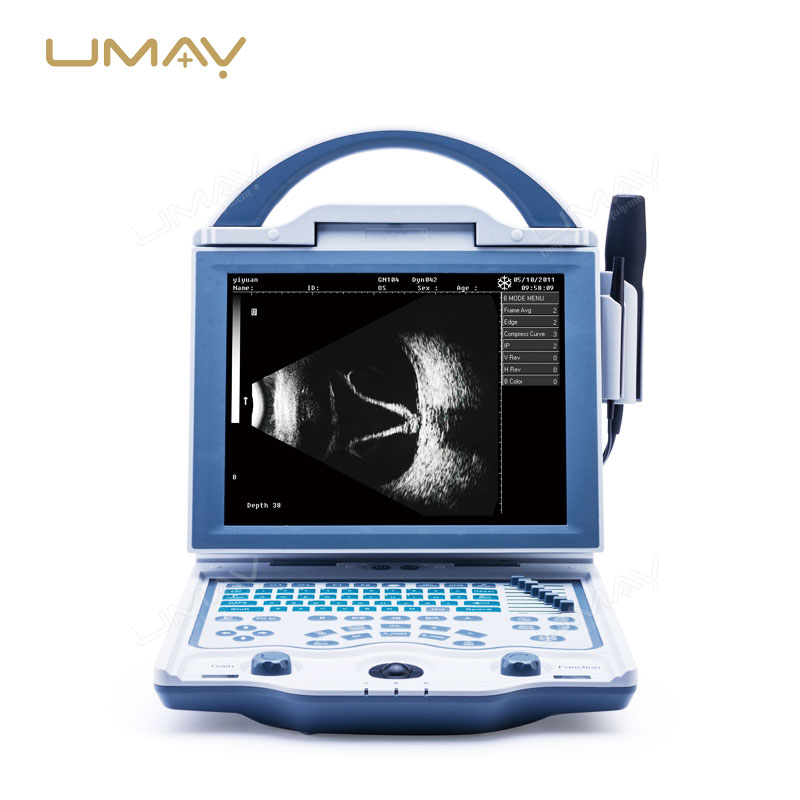

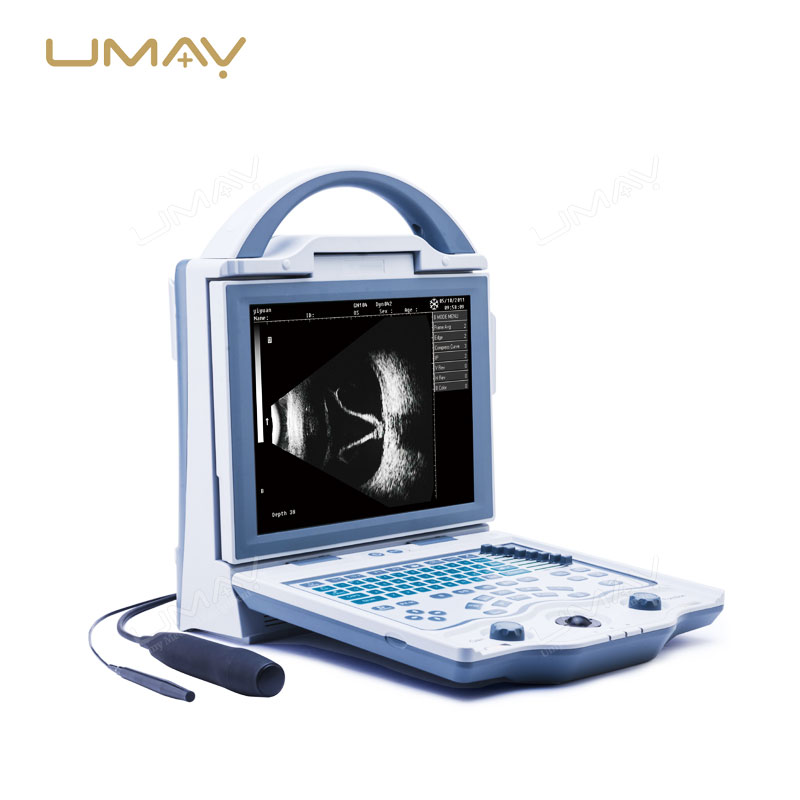

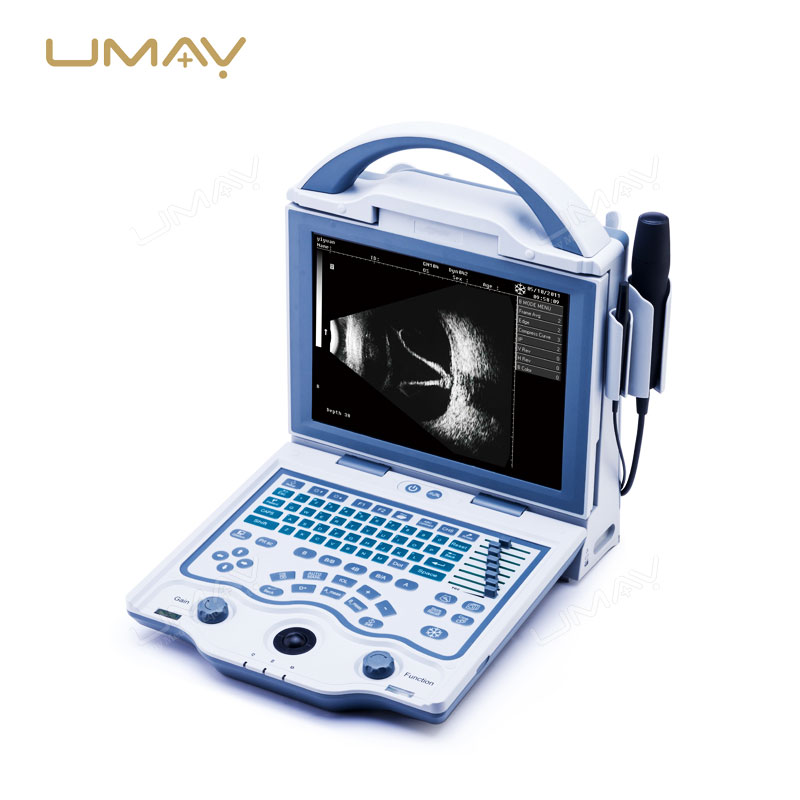

Popular Model High-Frequency Ophthalmic Ultrasound A/B Scan for Accurate Eye Diagnoses
SKU: UMY-US-069
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
- SKU NO.: UMY-US-069
- Device Classification: Class Ⅱ
- Warranty: 1 Year
- Power Source: Electric
- Transport Package: Carton
- Origin: China
- Material: Metal, Plastic
- After-Sale Service: Online Technical Support
- Production Capacity: 3000 Sets/Year
The high-frequency ophthalmic ultrasound A/B scan is a popular model used for detailed imaging of the eye, providing crucial diagnostic insights for ophthalmologists. This versatile device is essential for assessing ocular conditions such as retinal diseases, cataracts, and glaucoma. The A/B scan technology allows for precise measurements of the eye’s internal structures, improving the diagnosis of various eye conditions. With its high-frequency capabilities, this ultrasound delivers clear, accurate images for enhanced clinical outcomes. It is an indispensable tool in both routine eye examinations and complex ophthalmic diagnostics.
The Specific Parameters
| ITEMS | PARAMETERS |
|---|---|
| Abundant Data Storage | |
| Built-in Storage | 16GB D disk for storing data, images, and reports |
| USB Support | U disk for software upgrade and one-key storage |
| Network Port | DICOM3.0 for easy data transmission |
| Practical Workstation | |

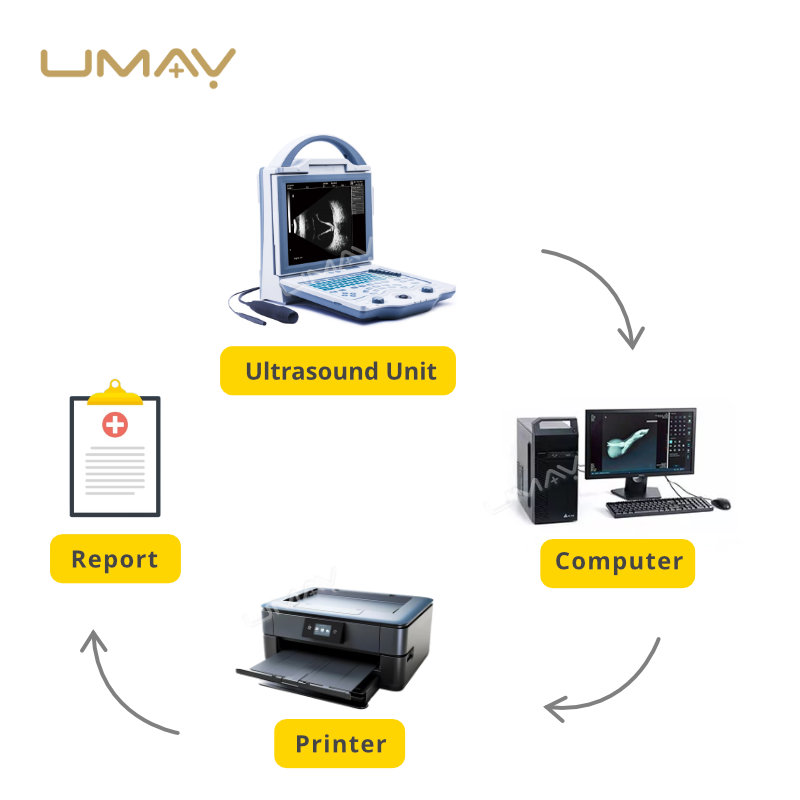

| Software Functionality | Simple, practical software for data management and printing |
| Report Types | Report-print, screen copy, IOL report, case reports with images |
| A Scan Parameters | |
| Probe Frequency | 10MHz with Fixation Red Light |
| Resolution | 0.01mm |
| Accuracy | ±0.1mm |
| Measuring Range | 15~40mm |
| Measuring Parameters | ACD, Lens, Vitreous body, AL |
| Measuring Method | Contact and Immersion |
| Measurement Modes | Normal, Cataract, Aphakic, Special eye model |
| IOL Formulas | SRK-T, SRK-II, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS |
| Data Storage | Up to 100 group results |
| B Scan Parameters | |
| Probe Frequency | 10MHz |
| Frame Rate | 10 frames/sec |
| Scanning Angle | 53° |
| Gain | 0~120dB adjustable, 8 steps TGC |
| Measurement Functions | Distance, circumference, area, volume, angle |
| Pseudo-color | 8 kinds |
| Cineloop | 128 frames, measurement available |
| Post Processing | 8 groups of curves |
| Standard Configuration | |
| Main Unit | Included |
| 10MHz Mechanical Sector B Probe | Included |
| 10MHz A Probe | Included |
| Foot Switch | Included |
| Network Cable | Included |
| Workstation Software | Included |
| Optional Configuration | |
| Battery | Optional |
| Video Recorder | Optional |
| Immersion Shell | Optional |
| Accessories | |
| A-scan Probe | 10MHz |
| B-scan Probe | 10MHz |
| Foot Switch | Standard round pedal type |
