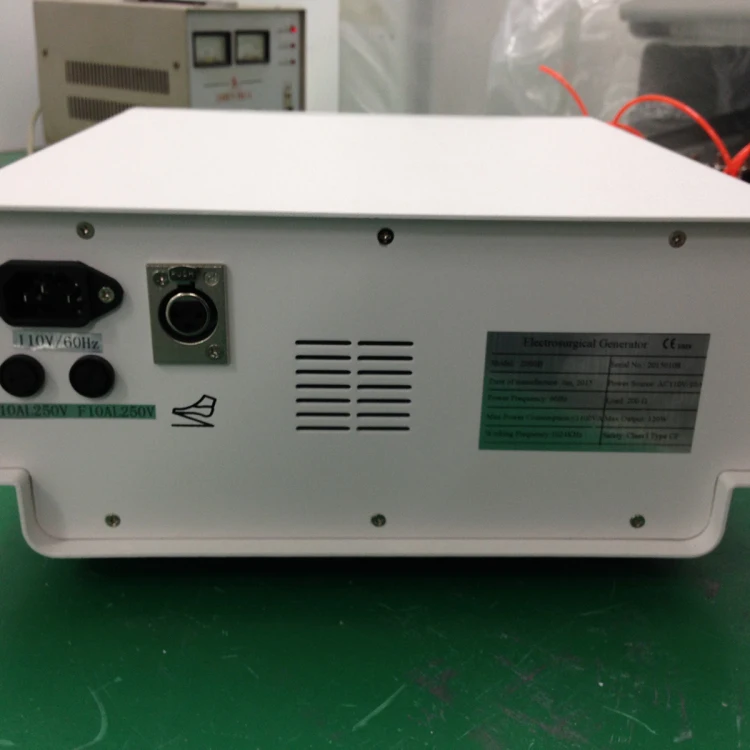

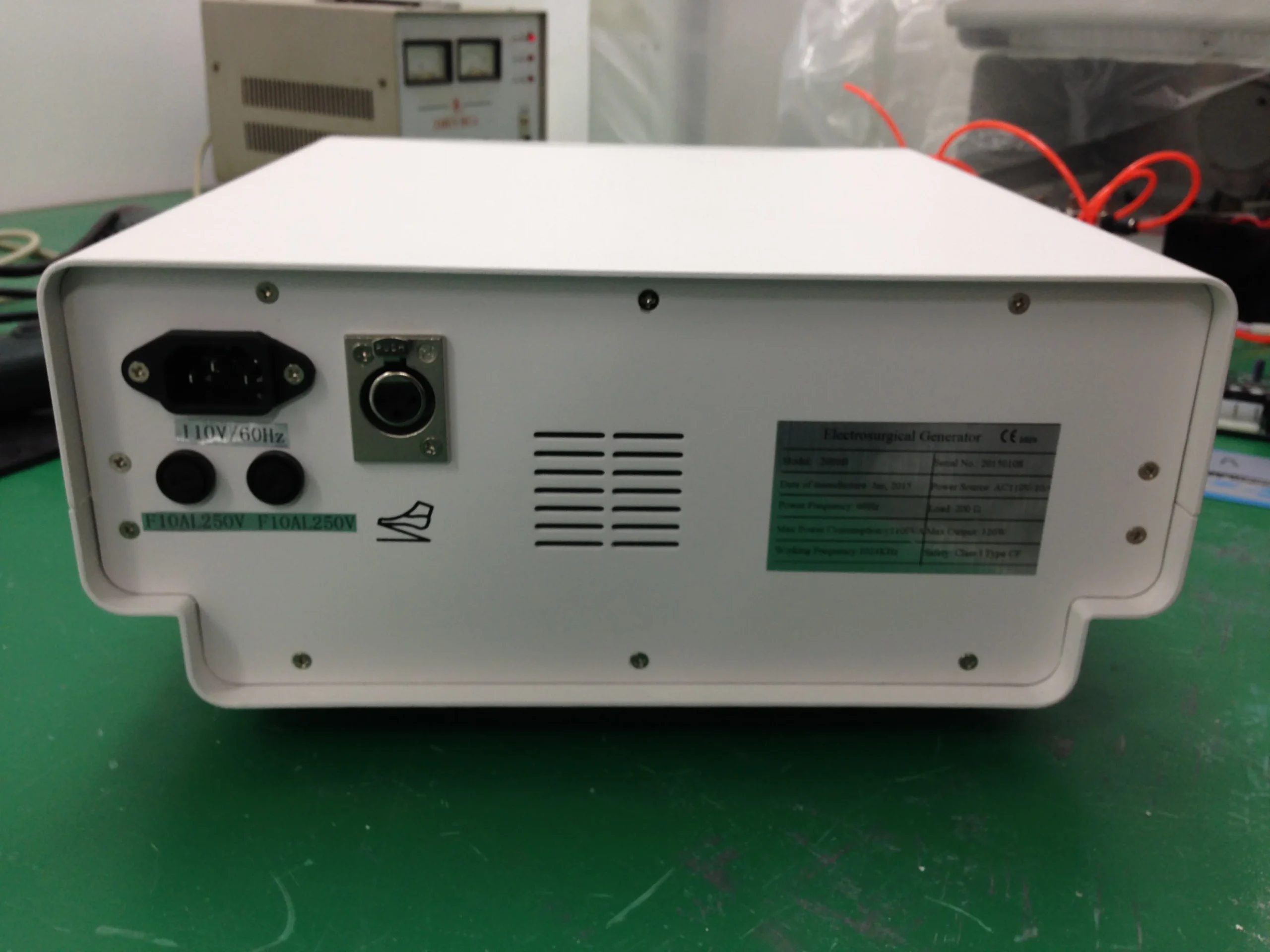

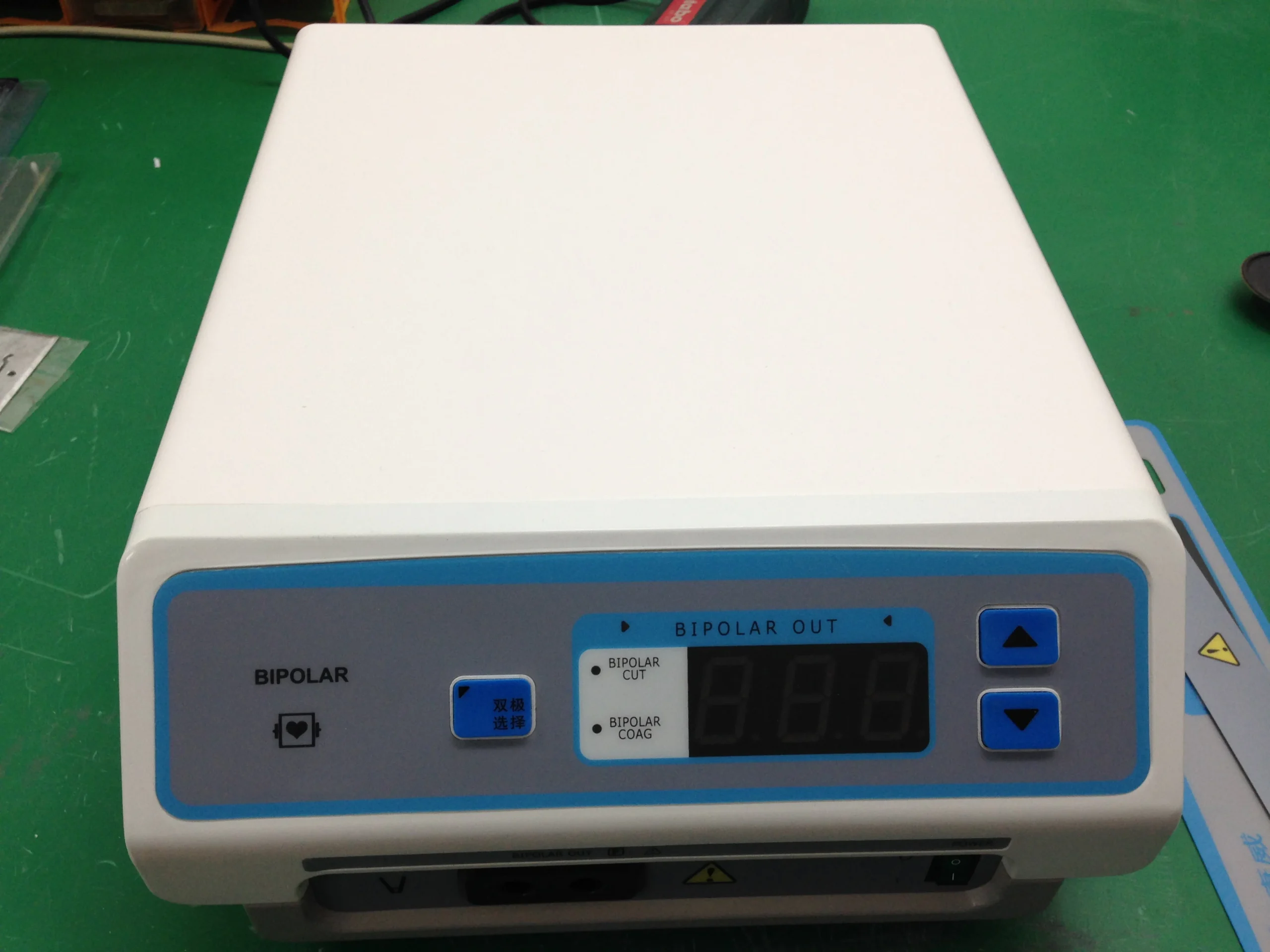

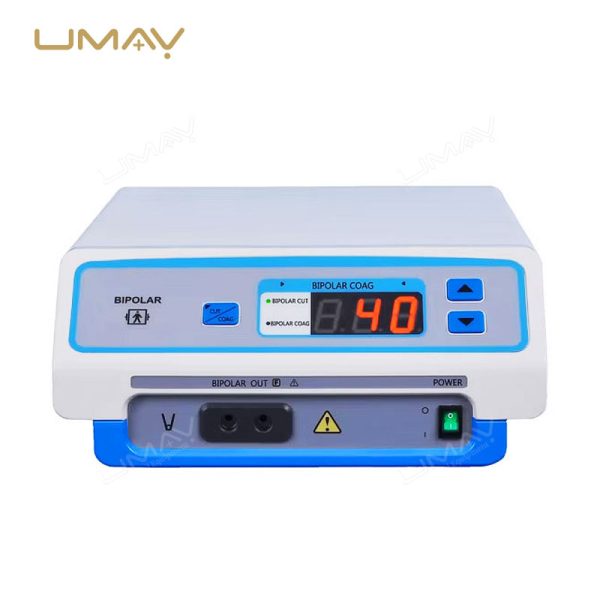

Moveable Electrosurgical Generator Bipolar Coagulator by China Manufacturer
SKU: UMY-SE-051
Brand: Umy
MOQ: 1
Origin: China
Quick Info.
Power Source: Electric
Warranty: 1 years
After-sale Service: Online technical support
Material: metal, Plastic
Shelf Life: 2 years
Quality Certification: ce
Instrument classification: Class III
Safety standard: GB/T18830-2009, I-type BF-type
Properties: The Basis of Surgical Instruments
Power supply connection: 220V±22V(110V±11V) 50Hz±1Hz
Working frequency: 1024KHz
Bipolar cut: macro bipolar
Two working modes: bipolar coag, bipolar cut
Output power: 1-120W(load 200Ω)
Footswitch: 1set
None sticky bipolar Forceps and cable: 1set
Warranty: 1 years
After-sale Service: Online technical support
Material: metal, Plastic
Shelf Life: 2 years
Quality Certification: ce
Instrument classification: Class III
Safety standard: GB/T18830-2009, I-type BF-type
Properties: The Basis of Surgical Instruments
Power supply connection: 220V±22V(110V±11V) 50Hz±1Hz
Working frequency: 1024KHz
Bipolar cut: macro bipolar
Two working modes: bipolar coag, bipolar cut
Output power: 1-120W(load 200Ω)
Footswitch: 1set
None sticky bipolar Forceps and cable: 1set
- SKU NO.: UMY-SE-051
- Warranty: 1 Year
- Origin: China
The moveable electrosurgical generator is designed for precise bipolar coagulation during surgical procedures. Manufactured in China, this system offers reliable performance with adjustable power settings, ensuring optimal coagulation for various medical applications. Its portability allows for easy movement between surgical rooms, enhancing efficiency in busy hospital environments. Ideal for use in both general and specialized surgeries, it ensures minimal thermal damage to surrounding tissues. Upgrade your surgical capabilities with this cost-effective and versatile electrosurgical generator.
The Specific Parameters
|
Safety standard
|
GB/T18830-2009
|
|
Properties
|
The Basis of Surgical Instruments
|
|
Type
|
Electrosurgical unit
|
|
Power supply connection
|
220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
|
|
Safety standard
|
I-type BF-type
|
|
Two working modes
|
bipolar coag、 bipolar cut
|
|
Bipolar cut
|
1W～120W（Load 200Ω）
|
|
Bipolar Coag
|
1W～120W（Load 200Ω）
|
|
Power supply
|
5A220V∽±10％，50±1％Hz
|
|
Bipolar cut
|
macro bipolar
|
|
Relative moisture range
|
≤95％
|
|
Overall energy consumption
|
≤1100VA
|
|
Atmosphere pressure range
|
500hPa~1060hPa
|
Bipolar coag：1W～120W (load 200Ω)
This is suitable for application in orthopedics, microsurgery and thoracic surgery. The less tissues are held, the better the effect will be during operation. Too much tissue to be held will affect the result of hemostasia. Clamp body tissues with bipolar forceps, and output power for electrocoagulation, cut off the output as it leaves from human body, which must be controlled by footswitch, otherwise, operations mentioned above can not be accomplished.
Bipolar cut ( 1W～120W)（load 200Ω）
Bipolar cut contains certain amount of clotting component, can be used in bipolar cut operation for general surgery, and bipolar cut and coag for endoscopic surgery, it will concentrate more energy when using high power bipolar. Notice: Power supply should be cut off before opening the enclosure of this machine.
