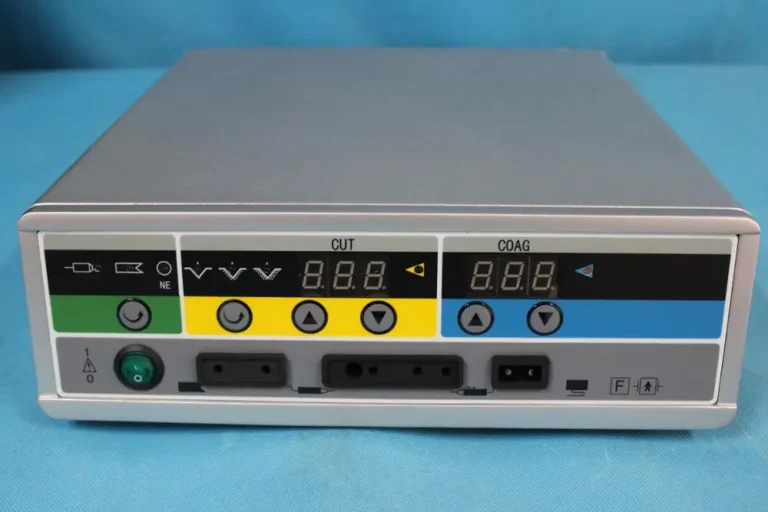

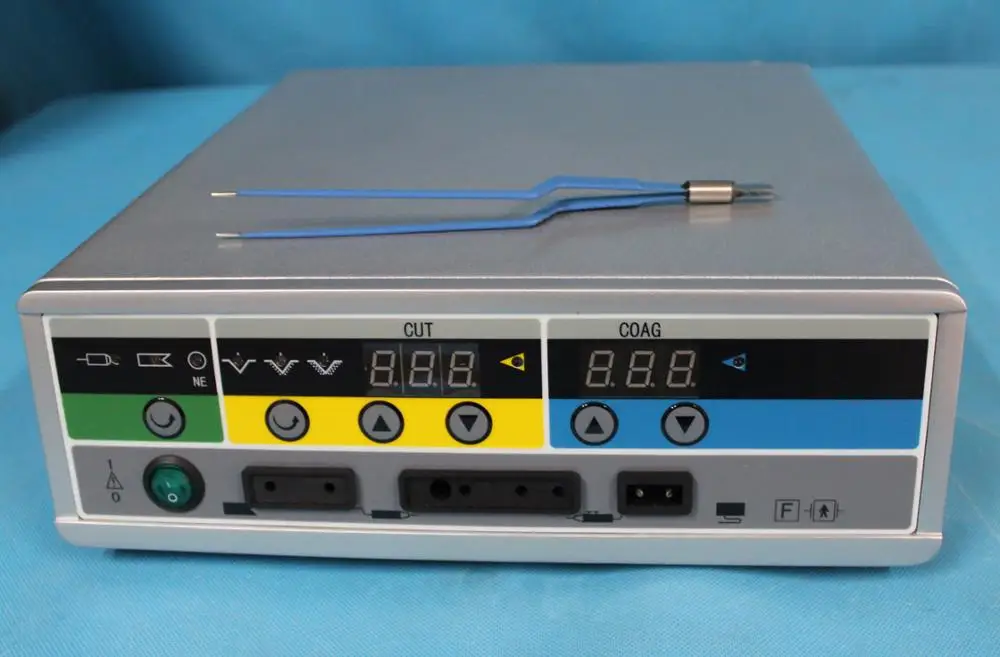

High-Frequency Electrosurgical Generator 300W with Precision Fabrication
Quick Info.
Maximum output power: 300W
Safety standard: I-type BF-type
Ambient temperature range: +10℃~ +40℃
Relative humidity range: 30 ~ 75%
Atmospheric pressure: 700~ 1060 hPa
Power supply: 220V ± 22V 50Hz ± 1Hz
Operating frequency: 530KHz±2
Overall energy consumption: ≤1400VA
- SKU NO.: UMY-SE-054
- Warranty: 1 Year
- Origin: China
This 300W high-frequency electrosurgical generator is engineered with precision fabrication, offering exceptional performance for a variety of surgical applications. It provides accurate cutting and coagulation, ensuring minimal thermal damage to surrounding tissues and enhancing surgical precision. Designed for use in both general and specialized surgeries, it delivers reliable power and control during procedures. Its advanced features support optimal efficiency and safety, making it ideal for operating rooms and surgical centers. Upgrade your surgical toolkit with this powerful and precisely crafted electrosurgical generator for improved patient outcomes.
The Specific Parameters
– Maximum output power: 300W
– Five output modes: (1) pure cut, (2) mixed cut 1, (3) mixed cut 2, (4) electrocoagulation, (5) bipolar condensate;
– Electric cut mode: pure cut 100% cut, mixed cut 1 70 % cut, 30% coagulation; mixed cut 2 50 % cut, 50% coagulation;
– Pure cut: Maximum output power 300W, enabling easy surgery on any tissues and structures;
– Mixed cut: Applicable for any tissue, good coagulation effect when conducting cutting;
– Electrocoagulation: Applicable for general open surgery and fine surgical point coagulation, featuring deep tissue coagulation layer and excellent coagulation effect;
– Bipolar coagulation: When the tissues achieve the effect of coagulation, the output power will begin to reduce slowly to achieve good coagulation effect;
– Panel operation: Overall microcomputer automatic control, two-zone (LED) digital display, key function/power, switch/settings, waterproof panel design
– Automatic adjustment: Automatically fine adjust power in a certain range to ensure the consistency of the cutting effect;
– Automatic recognition: Neutral unipolar/bipolar plate automatic recognition, when using the dual-circuit plates and the contact area less than 60%, it should automatically stop the power output and send sound-light alarm until the contact area returns to normal, which could effectively avoid burning patients by plates.
| Safety standard | I-type BF-type | |
| Ambient temperature range | +10℃~ +40℃ | |
| Relative humidity range | 30 ~ 75% | |
| Atmospheric pressure | 700~ 1060 hPa | |
| Power supply | 220V ± 22V 50Hz ± 1Hz | |
| Operating frequency | 530KHz±2 | Load: Monopolar cut coagulation 300Ω, Bipolar coagulation 100Ω |
| Rated output power | a)Pure cut: 1W ~ 300W(Peak voltage 1500V) | b)Mixed cut 1: 1W ~ 250W(Peak voltage 2000V) |
| c)Mixed cut 2: 1W ~ 150W(Peak voltage 2500V) | d)Electrocoagulation 1: 1W~ 100W(Peak voltage 3500V) | |
| e)Bipolar coagulation:1W ~ 50W(Peak voltage 620V) | ||
| Overall energy consumption | ≤1400VA | |
| Transport and storage | a)Ambient temperature range: -40℃~ +55℃ | b) Relative humidity range: ≤93% |
| c)Atmospheric pressure range: 500hPa ~1060hPa | ||
