Full Set Video Pediatric Bronchoscope Camera with OEM Service – Endoscope Equipment
Quick Info.
Warranty: 1 Year
After-sale Service: Online technical support
Material: Plastic
Shelf Life: 6months
Quality Certification: Sgs
Instrument classification: Class III
Safety standard: B9706.1-1995
Application: Surgical Operation
Function: Surgery Medical
Properties: Pediatric Bronchoscope
MOQ: 1 Set
Type: Optical Endoscope
Package size: 64*18*48cm
Weight: 5.18kg
Feature: Reusable Surgery Instruments
- SKU NO.: UMY-SE-089
- Warranty: 1 Year
- Origin: China

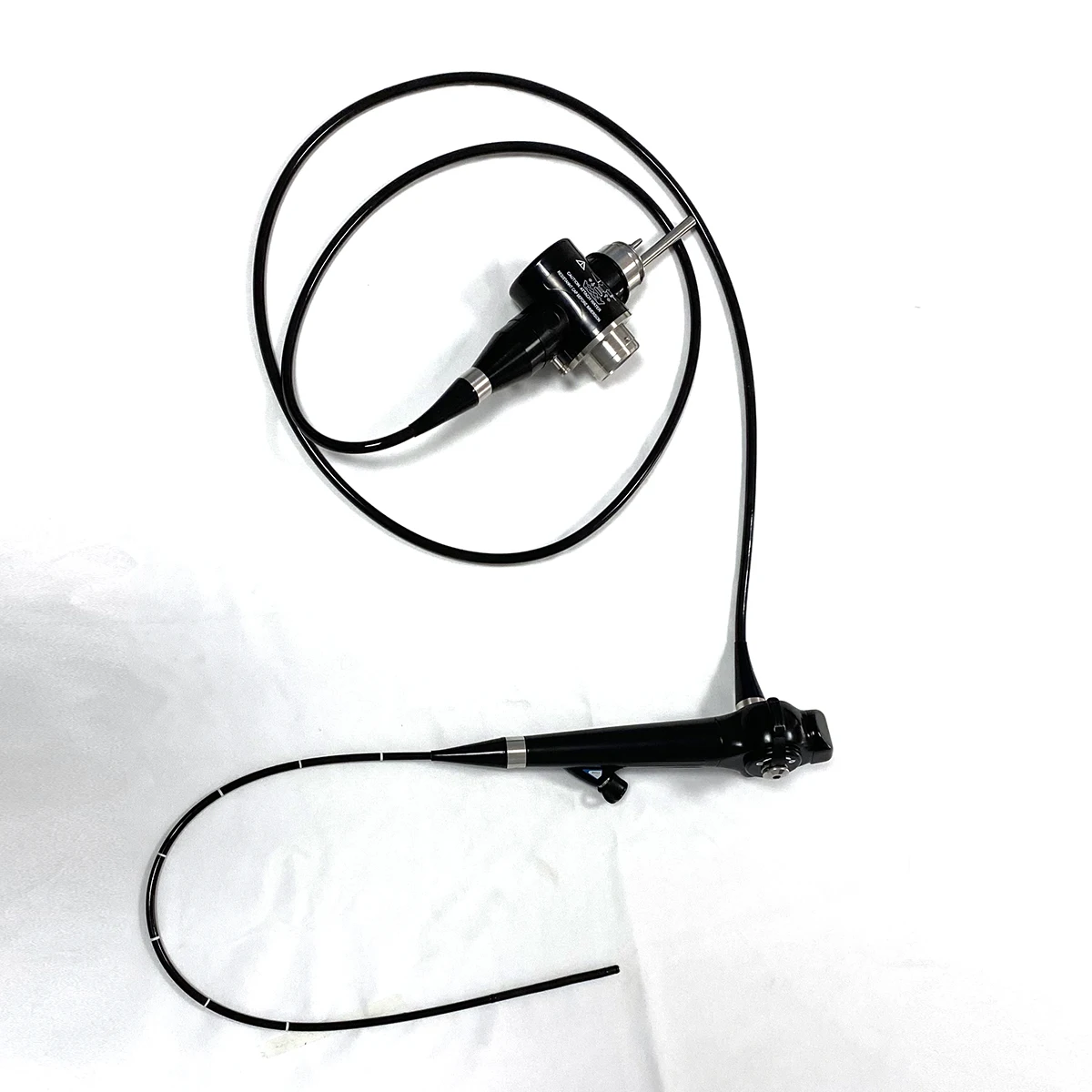

This full set video pediatric bronchoscope camera is designed for precise respiratory examinations in children, offering high-definition imaging for accurate diagnosis. The system provides clear visualization of the airway, helping to detect conditions such as asthma, foreign body aspiration, and infections. Its compact design is ideal for pediatric use, ensuring patient comfort during procedures. The endoscope equipment comes with OEM service, allowing for tailored solutions to meet specific needs. Enhance your pediatric care with this reliable, customizable bronchoscope camera set for effective and efficient diagnostics.
The Specific Parameters
|
Item
|
Bronchoscope
|
|||
|
Diameter of distal- end
|
Φ3.8mm
|
|||
|
Diameter of insert tube
|
Φ 3.6mm
|
|||
|
Clamp aperture
|
Φ1.0mm
|
|||
|
Working length
|
530mm
|
|||
|
Total length
|
790 mm
|
|||
|
View of field
|
120 º
|
|||
|
Depth of view
|
3-50mm
|
|||
|
Tip deflection
|
up 160° down 130°
|
|||
|
We can provide OEM service, technical details can be customized.
|
||||

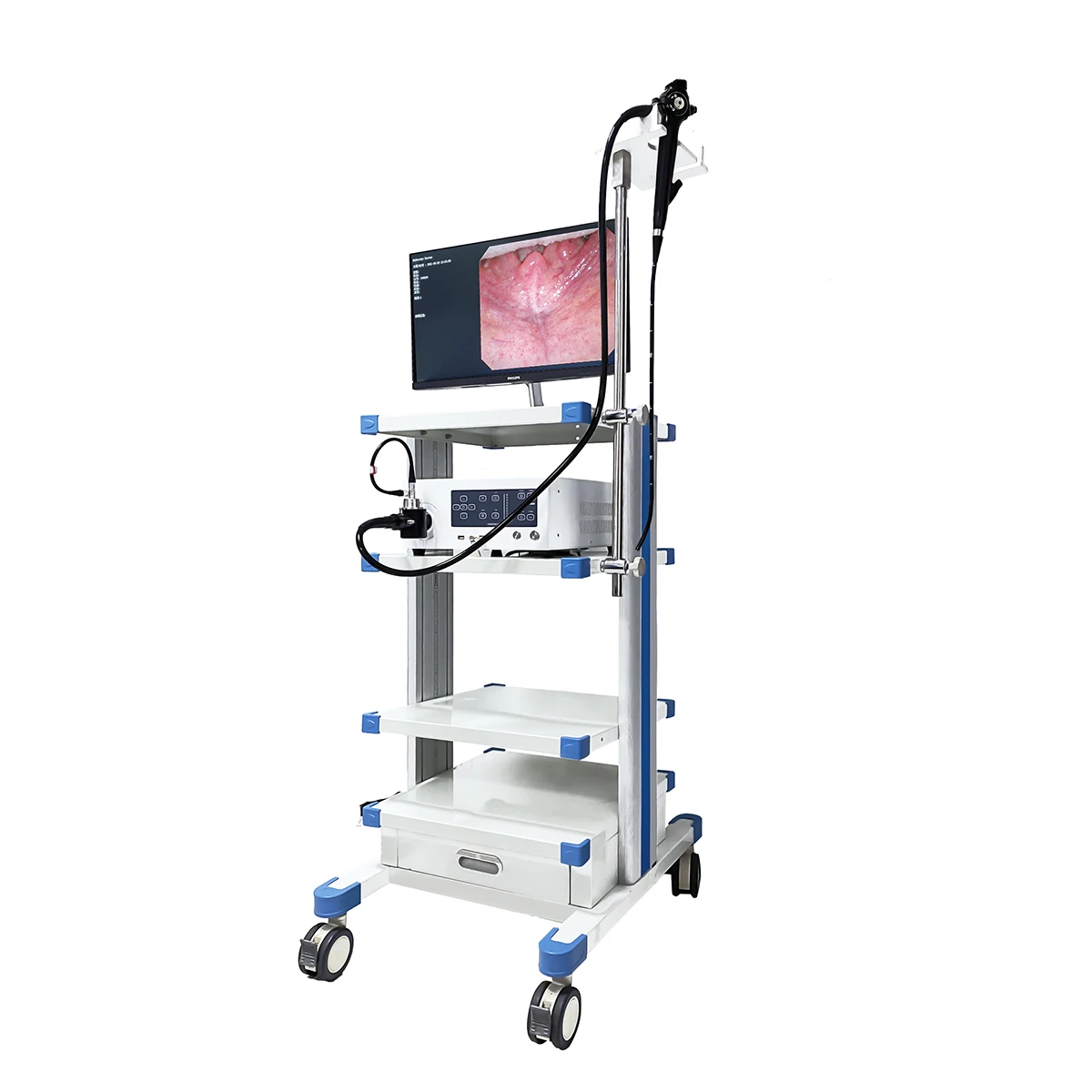

Video processor and light cold source machine EMV-3000
– Lamp : LED light (80W white)
– Power: 220-240V; 50-60HZ
– Color temperature : ≥5300K
– Video signal output: HDMI x2,DVI
– Sharpness adjustment :0-3 grade
– Withe balance : Auto white balance/ Manually white balance
– Gain function : 1-3 grade
– Air pump pressure : 30-60Mpk,
– Image side :Octagon/round
– Air flow : 4-10 L/min
– Package size :55*46*50cm (G.W.:16kgs)
– Main Function:
– Brightness , Contrast,Tone,Saturation 0-100 grade can be adjustment .Large screen frozen, small screen display continue .Digital widescreen and picture in picture function. With USB interface support picture and video record function
– Support add our video gastroscope / colonoscope share this tower to use if hospital need this in future .
2. Resolution：1920 X 1080
3. DisplayRatio：16:9
4. Color：7M
5. Camoration Brightness：180±10 cd/㎡
6. Brightness：250 cd/ ㎡
7. Interface :VGA/HDMI
8. Package size : 65*18*50cm(G.W.:6 kgs)
