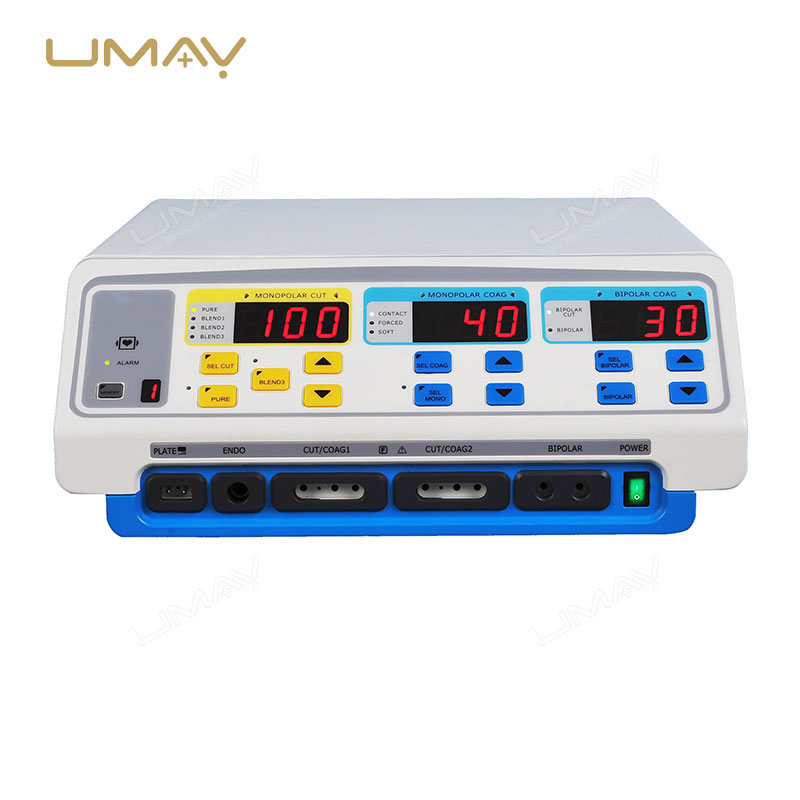

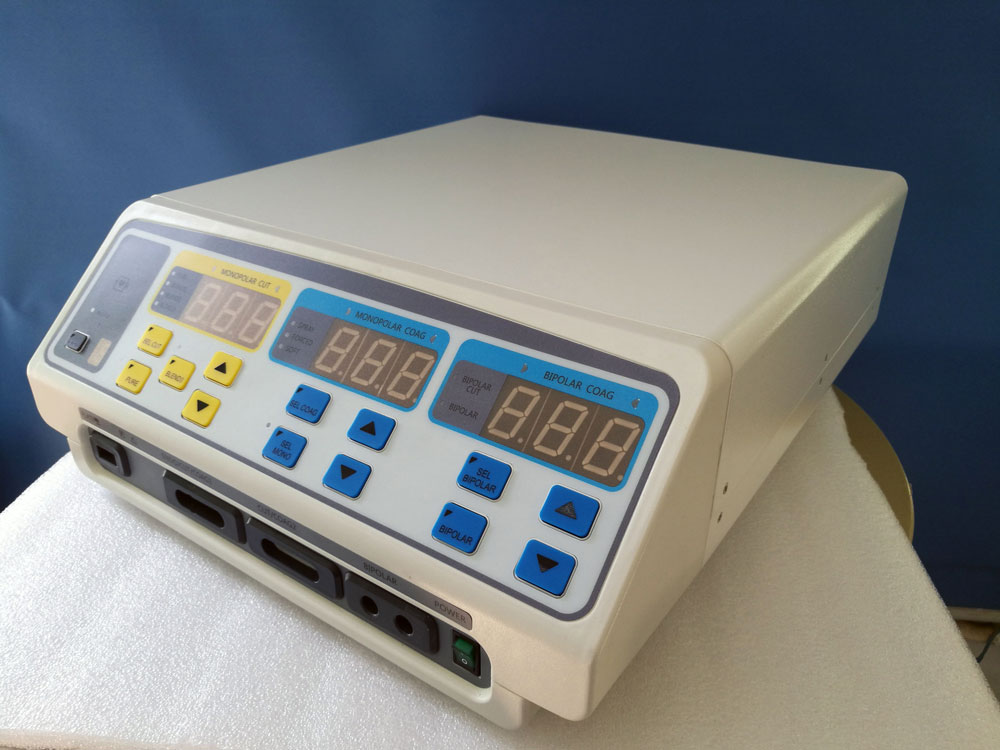

Bipolar Electrosurgical Generator for Laparoscopy with Ligasure Vessel Sealing Technology
Quick Info.
Power Source: Electric
Warranty: 1 years
After-sale Service: Online technical support
Material: metal, Plastic, Resin
Shelf Life: 2 years
Quality Certification: ce
Instrument classification: Class I
Safety standard: EN 149 -2001+A1-2009
9 working modes: pure cut, blend1, blend2,
9 working modes 2: bipolar coag, bipolar cut
9 working modes 3: blend3, contact coag, forced coag, soft coag
Rating power: 1100VA
Monopolar Operating frequency: 512KHz
Pure cut: 1W~300W( Load 800Ω)
Blend: 1W~200W(Load 800Ω)
Bipolar: 1024KHz
Atmosphere pressure range: 500hPa~1060hPa
Ambient temperature range: -40℃~55℃
- SKU NO.: UMY-SE-069
- Warranty: 1 Year
- Origin: China
This bipolar electrosurgical generator for laparoscopy integrates Ligasure technology for precise vessel sealing, enhancing surgical efficiency and safety. The advanced Ligasure technology enables effective tissue fusion and hemostasis, reducing the need for sutures or clips during minimally invasive surgeries. It is ideal for laparoscopic procedures, offering reliable performance and reduced operative time. The system ensures minimal thermal spread, protecting surrounding tissues while providing consistent and controlled energy. Improve the precision and outcomes of your laparoscopic surgeries with this cutting-edge electrosurgical generator.
The Specific Parameters
Main Features
★Max 400W Electrosurgical Generator, with mono-polar and bipolar function.
★Nine working modes: pure cut, blend1, blend2, blend3, contact coag, forced coag, soft coag, bipolar coag, bipolar cut.
★Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology, urology(under water TUR), oncology, neurosurgery, etc.
★Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of outputting.
★Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
★Both hand and foot controlled.
★Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be individually configured.
★Memory for at least 10 frequently used programs.
★Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
★The ESU unit can be connected with laparoscope and endoscope, etc.
★Protection against over-voltage and over-current.
★Defibrillation protected.
★Convection refrigeration without ventilator.
★Mounted on a 4 wheels cart(optional).
★Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Operating frequency: a)Monopolar:512KHz b) Bipolar:1024KHz
Power rating: 1100VA±10％
Nine working modes:
◆Mono-polar Cut
a) Pure cut：1W～400W( Load 800Ω)
b) Blend1：1W～300W(Load 800Ω)
c) Blend2：1W～200W(Load 800Ω)
d) Blend3：1W～150W(Load 800Ω)
◆Mono-polar Coag
e) Spray Coag：1W～80W( Load 800Ω)
f) Forced Coag：1W～120W( Load 800Ω)
g) Soft Coag：1W～120W( Load 800Ω)
◆Bipolar
h) Bipolar Coagulation: 1W～70W( Load 200Ω)
i) Bipolar Cut: 1W～120W( Load 200Ω)
◆Power Consumption: ≤1100VA
|
Configuration Sheet
|
|
|
Electrosurgical Pencil
|
5
|
|
Electrosurgical Pad
|
10
|
|
Electrosurgical pad cable
|
1
|
|
Footswitch
|
1
|
|
Bipolar Forceps
|
1
|
|
Bipolar forceps cable
|
1
|
