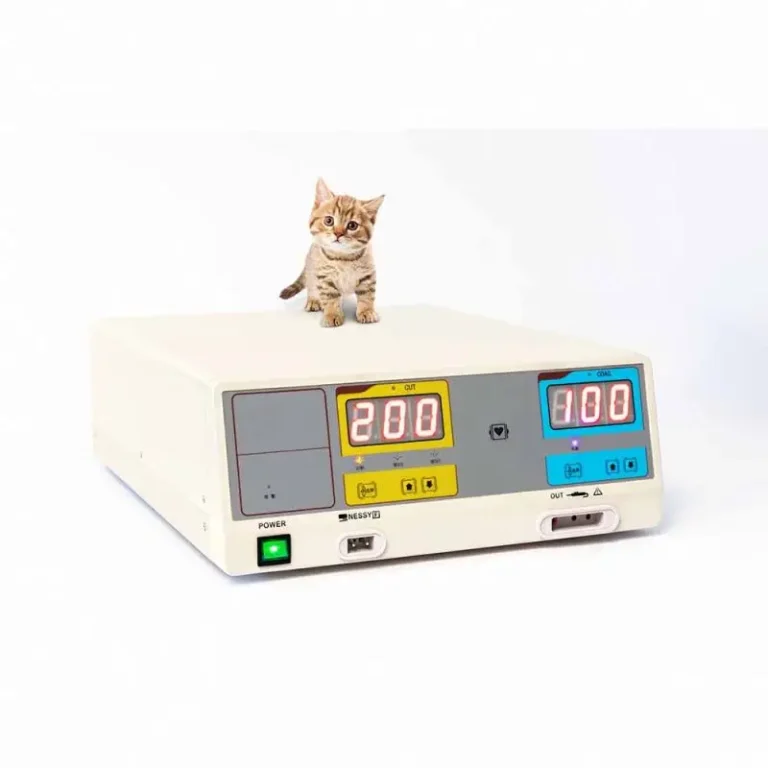

200W High-Frequency Handheld Veterinary Electrosurgical Unit with Scalpel for Surgery
Quick Info.
Warranty: 1 Year
After-sale Service: Online technical support
Material: metal, Plastic
Shelf Life: 1years
Quality Certification: ce
Instrument classification: Class II
Safety standard: GB/T18830-2009
Product name: Electrosurgical Unit ESU Electrosurgical Generator
Normal Polarity, Ground open: < 50μA
Reverse Polarity, Ground Open: < 50μA
Sink Current, 140V Applied, All inputs: < 50μA
Operating Frequency: 530 KHz
Power Supply: 100-240V / 50-60Hz
Output power: 400W
Coag: 120w;100w
Blend2: 250W;150W
Bipolar coag: 70W
- SKU NO.: UMY-SE-059
- Warranty: 1 Year
- Origin: China
This 200W high-frequency handheld veterinary electrosurgical unit is designed for precision in veterinary surgeries, offering a powerful scalpel for efficient cutting and coagulation. Its compact, ergonomic design makes it easy to handle, allowing for greater control during delicate procedures. Ideal for a variety of surgeries, including soft tissue removal and wound closure, this unit minimizes thermal damage and enhances healing times. The advanced technology ensures reliable performance in both small and large animal surgeries. Upgrade your veterinary surgical practice with this versatile and efficient electrosurgical unit.
The Specific Parameters
Five output modes:
| Mono cut | Cutting: 200W (load 500) |
|
Blend: 150W(load 500) |
|
| Mono Coag | Soft Coag: 110W (load 500) |
|
Strong Coag: 80W (Load 500) |
|
| Bioplar |
Bipolar Coag: 50W (load 200) |
Technical parameters:
1. Environmental temperature range: 5 C~40 C;
2. Relative humidity range: <80;
3. Atmospheric pressure range: 86.0-106.0 kpa;
4. Power supply: 220V (+22V), 50Hz (+1);
5. Working frequency: 360-460 kHz;
6. Rated power of equipment: 880 VA+10%;
7. Type of equipment: CF
8. The power consumption of the whole machine is less than 1000VA. (Cutting function 300)
